SERVICES
1. PROJECT MANAGEMENT
Our Engineering key to Success and Customer Satisfaction
is the result of a highly successful project management
strategy. In order to meet quality, budget and time
requirements, IndoSCADA applies proven project
development techniques.
•
Project document control
•
Procurement schedule and Material Inspection
•
Safety Inspection procedure and Job Safety Analysis
•
Inspection and Quality control schedules and
procedures
•
Fabrication, Testing and Staging schedule and
procedures
•
Packing and Lifting Procedures
2. EVALUATE USER REQUIREMENTS
•
Site Visits
•
Feasibility survey
•
Customer Consultations
•
Conceptual Design and identify the required electrical
•
environment, safety classification presented
•
Select the hardware, software
•
Evaluate Cost and Offer a quotation
3. BASIC DESIGN APPROVALS
•
Basic Engineering
•

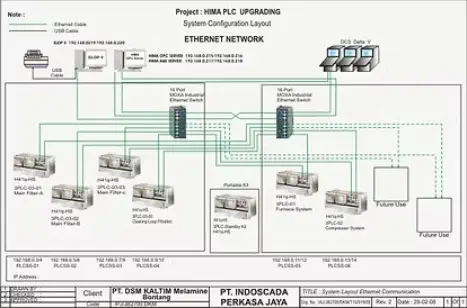

System Layout and General Arrangement Drawing
•
Control Philosophy / Standard Operating Procedure
(SOP)
•
Input / Output List, Operator Interface Layout, Controls,
Screens etc.
•
Bill Of Materials
4. SYSTEM ENGINEERING
•
Detailed Engineering
•
Instrument Specifications, Loop Diagrams
•
Control Schematics / Wiring Diagrams / TSLD
(Troubleshooting Single Loop Diagram) in CAD
•
PLC Programming in FBD, LAD, SFC, STL etc. with
annotation
•
HMI / Operator Interface Configuration
•
Quality Control Plans
•
Procedure for Staging Factory Acceptance Tests
•
Training Manuals for operators and Maintenance

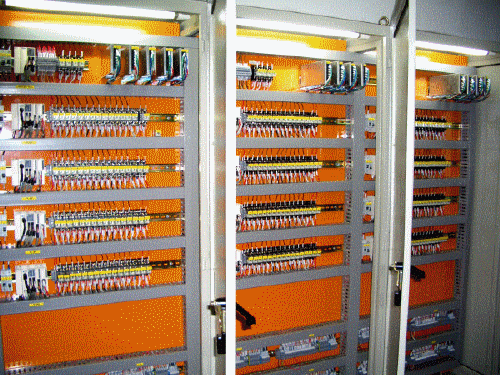

5. CONSTRUCTION AND FABRICATIONS
•
Assembly, Wiring
•
Cold Check, Downloading
•
Infant Mortality Runs
•
Pre-FAT Debugging / Simulation / Testing of control
logic, alarms, presets, safety interlocks, reports,
history and trending
•
Factory Acceptance Test (FAT)
•
Packing and Forwarding
6. CUSTOMER SUPPORT
•
Field Installation
•
Start-up and Commissioning, Site Acceptance Test
(SAT) Services
•
After Sales Service and Technical Support on-Site and
through remote connectivity
7. TRAINING AND JOINT DEVELOPMENT
•
Training in systems engineered and supplied by PT.
IndoSCADA.
•
Joint Development with customer. We consider active
participation by customer during development phase is
key factor of project.
•
Annual training courses conducted quarterly on
following equipments.
o
HIMA HIMAX / HiQUAD safety PLC systems, ELOPII /
SilWorx Software
o
Siemens Simatic S7-1200 / S7-300 / S7-400 / H / HF
PLC systems, Simatic Step7 TIA Portal, WinCC
Professional / Flexible etc.
