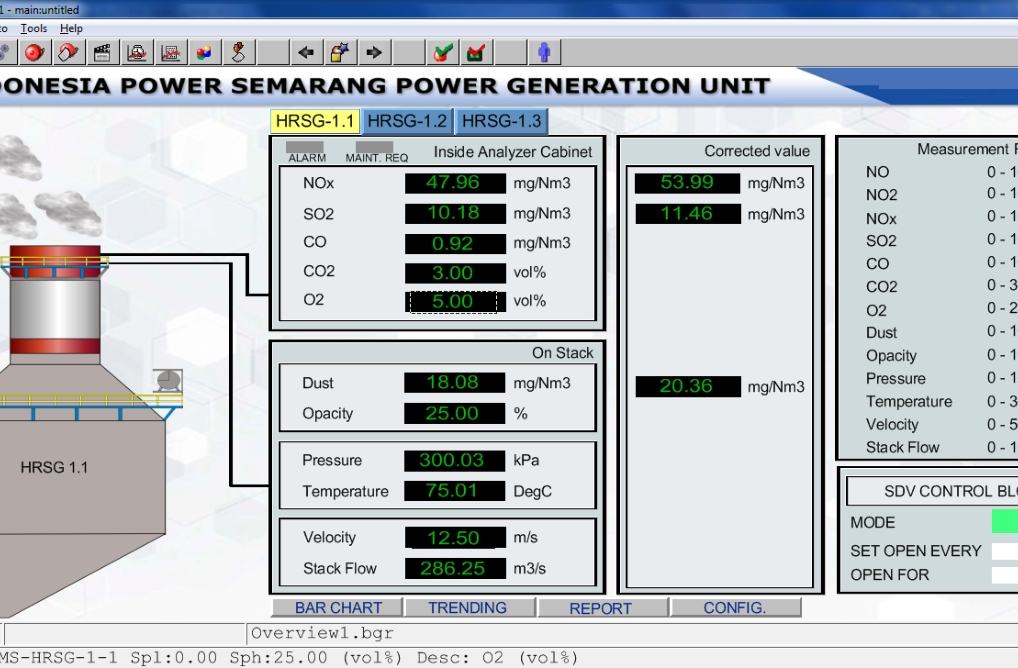

Overview graphic

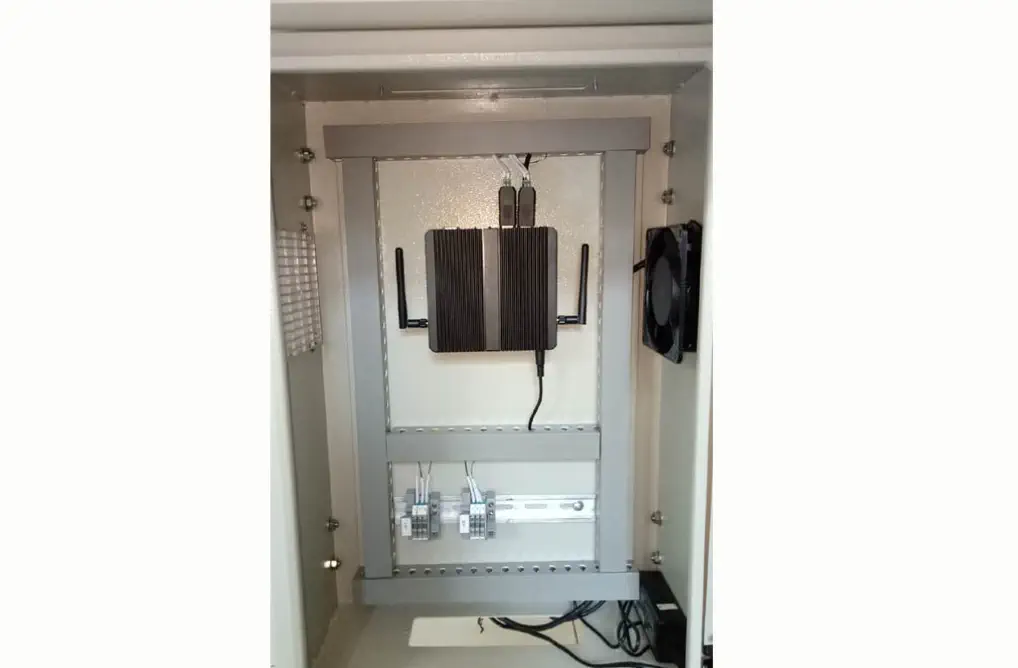

Internal layout
SCADA Station
3 DAS PLC

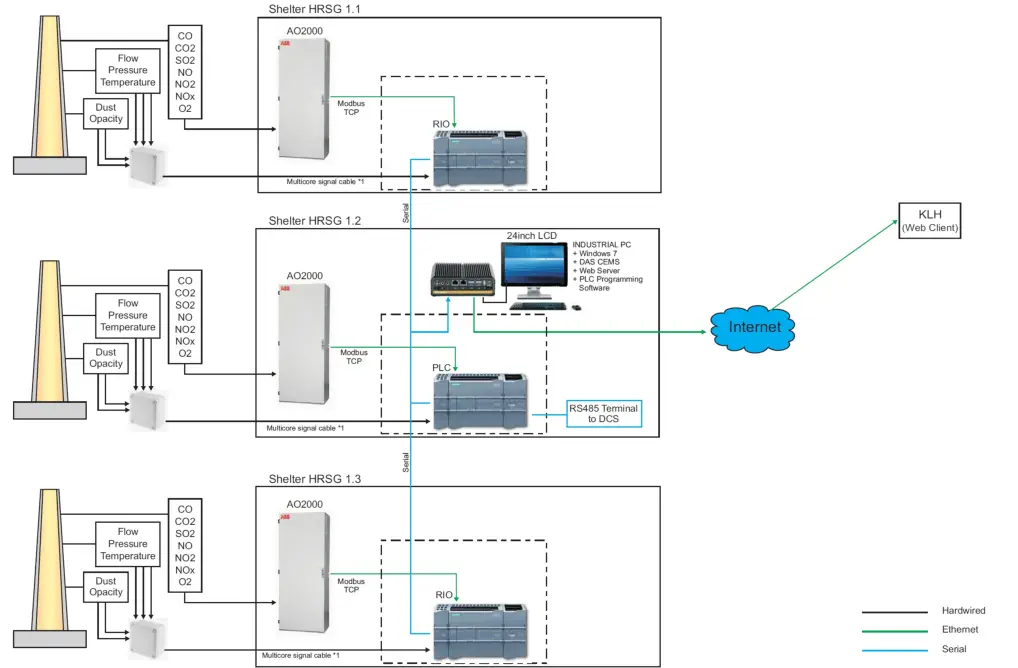

System Configuration Layout
Hardware
•
S7-1200 series PLCs with modbus TCP and RTU
•
Industrial PC Provide Web Server
•
Operator Interface with Data Logging and Reporting,
•

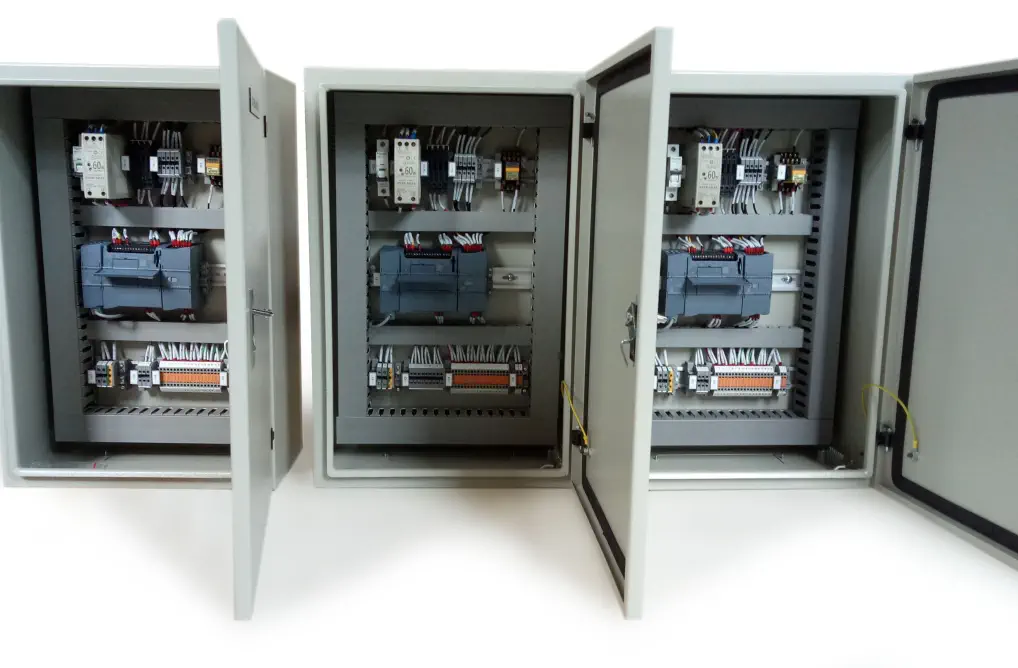

PLC Enclosures
•

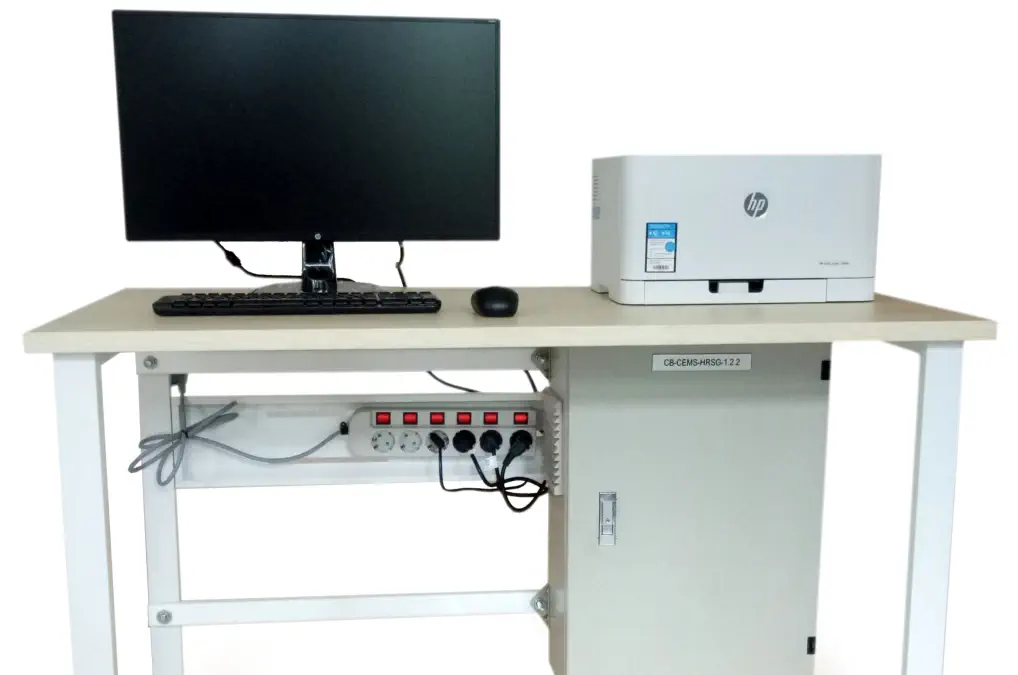

Operator Desk and Printer
Software
•
SIEMENS Simatic Step7
•
WebAccess Scada.
Scope of Work
Panel Fabrication, Assembly, Wiring, Testing, Program Development, FAT, SAT,
Commissioning.
Location
Semarang, Central Java
CEMS
(Continuous
Emission
Monitoring
System)
for
3
Streams,
measurinG
CO,
O2,
SO2,
NOx,
NO,
NO2,
Dust,
Opacity,
Flow
using
ABB
Analyzer AO2000 for a Power Plant
